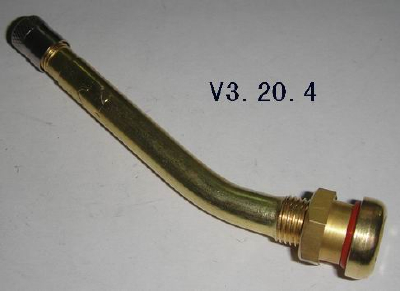

Truck tyre tubeless valve V3.20.4

Truck tyre tubeless valve V3.20.4

  • Min.Order Quantity: 1000 Sets
  • Supply Ability: 3000000 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/P,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2008-04-02
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Gaomi
  • Brand Name:  Hammer
  • Model Number:  V3.20.4

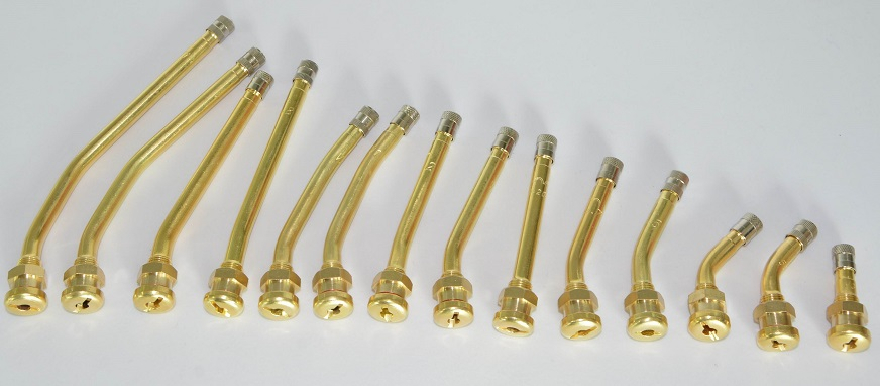

Tubeless metal clamp-in tyre valves for Truck and Bus

V3.20 Series metric rim hole valves

HM NO.

ETRTO NO  BENDING HIGHT/LENGTH LENGTH AFTER BENT  ANGLE  ANGLE  RIM HOLE

V3.20.1            36mm                  ---mm                   straight            Φ9.7mm

V3.20.2            30mm                  60mm                   ----       17.5°    Φ9.7mm

V3.20.3            82mm                  ---mm                   straight    ------    Φ9.7mm

V3.20.4            25mm                  60mm                   ----       27°      Φ9.7mm

V3.20.5            25mm                  40mm                   ----       27°      Φ9.7mm

V3.20.6            25mm                  85mm                   ----       27°      Φ9.7mm

V3.20.7            25mm                  50mm                   ----       27°      Φ9.7mm

V3.20.8            29mm                  85mm                   ----       12°      Φ9.7mm

V3.20.9            45mm                  52mm                   ----       12°      Φ9.7mm

V3.20.10          50mm                  25mm                   ----       28°      Φ9.7mm

V3.20.11          25mm                  45mm                   15°       27°      Φ9.7mm

V3.20.12          25mm                  70mm                   ----       27°      Φ9.7mm



COMPONENTS

Valve core 9000#,Rubber Grommet RG60/V9.11.5,Nut V9.07.2,Cap VC3/VC2



O-Ring seal valves for steel wheel with 9.7mm rim hole.

Nickel plated valves also in series.


  • Place of Origin:  Gaomi
  • Brand Name:  Hammer
  • Model Number:  V3.20.4
